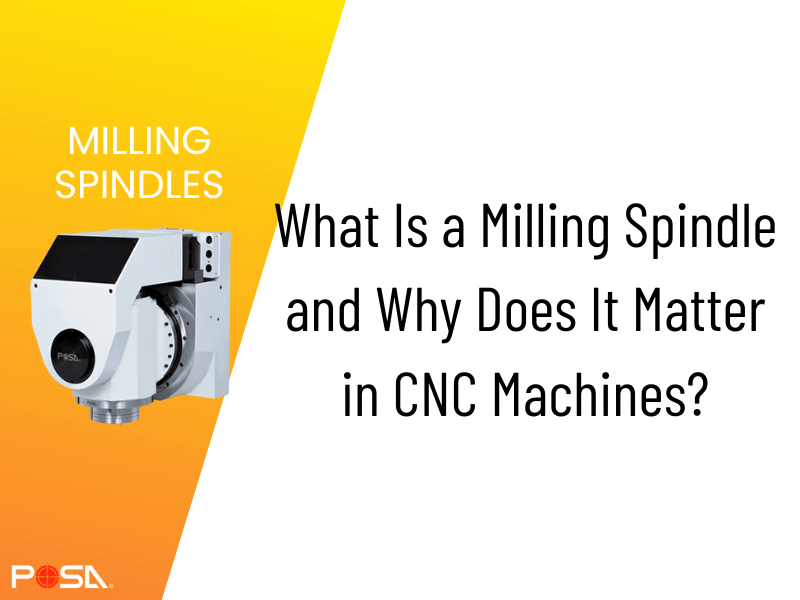

What Is a Milling Spindle and Why Does It Matter in CNC Machines?

In CNC machining, precision, rigidity, and cutting performance all depend on one critical component: the spindle. Whether you're working with a vertical milling center or a boring and milling machine, the spindle is the core of the operation. But what exactly is a milling spindle, and why is it so important?

Let’s take a closer look at the role of the milling spindle and what makes it essential for modern CNC machines.

What Is a Milling Spindle?

A milling spindle is the rotating axis of a CNC milling machine that drives the cutting tool. Unlike a lathe spindle (which rotates the workpiece), the milling spindle rotates the tool while the workpiece remains stationary or moves along controlled axes.

The spindle is responsible for:

• Rotating the tool at high speeds (typically from 6,000 to 30,000+ RPM)
• Delivering torque and power to cut materials like steel, aluminum, or graphite
• Holding the cutting tool securely using a taper (e.g., BT, CAT, HSK)
• Transmitting signals for tool changes, cooling, and monitoring

Key Components of a Milling Spindle

A typical CNC milling spindle includes the following elements:

• Spindle shaft: The rotating part that holds the tool.
• Bearings: High-precision angular contact or ceramic bearings for support and accuracy.
• Drive system: Can be belt-driven, direct-drive, or motorized (built-in).
• Cooling system: Air-cooled or liquid-cooled to manage heat during prolonged use.
• Tool interface: Tool holders such as BT40, HSK63, or ISO50 for tool connection.
• Sensors (optional): For vibration, temperature, or load monitoring.

POSA’s milling spindles, for example, are designed with high-speed, high-rigidity structures and customizable interfaces to suit various industrial demands.

Why Milling Spindles Matter in CNC Machines

1. Precision and Surface Finish

A high-performance spindle minimizes runout and vibration, resulting in superior surface finishes and tighter dimensional tolerances. This is especially critical in industries like aerospace and mold making, where even a 0.01 mm error can cause failure.

2. Material Versatility

Different materials require different cutting conditions. A good milling spindle should provide a wide range of speed and torque to machine everything from soft plastics to hardened tool steel.

3. Process Stability

In heavy-duty or deep-hole machining, spindle rigidity determines whether chatter occurs during cutting. POSA's boring and milling machine spindles, for example, feature long-stroke extensions and robust housing for stable performance.

4. Productivity and Tool Life

By maintaining consistent cutting conditions, a stable spindle reduces tool wear and extends cutting tool life, reducing total operating costs and downtime.

5. Automation and Integration

Modern spindles often integrate sensors and are compatible with ATC (Automatic Tool Changer) systems. These features support smart machining and predictive maintenance, improving production reliability.

Real-World Applications

Milling spindles are used across multiple industries:

• Aerospace: For machining structural components and complex profiles.
• Automotive: In high-volume production of engine blocks, transmission housings.
• Mold & Die: For contouring, cavity milling, and graphite electrode machining.
• Heavy Equipment: For deep-hole boring and milling of large components.
• Medical Devices: For producing high-precision tools and implants.

POSA’s spindle solutions are especially suited for boring and milling machines where long cutting strokes, heavy cutting forces, and thermal stability are crucial.

Choosing the Right Milling Spindle

When selecting a milling spindle, consider the following:

• Required speed and torque range
• Material being machined
• Tool interface compatibility (BT, CAT, HSK)
• Machine type (vertical, horizontal, gantry)
• Cooling system (air or liquid)
• Sensor integration (for smart factories)

If you're working with a boring and milling machine, long-stroke capability and thermal control are essential.

Conclusion

A milling spindle is more than just a rotating shaft—it’s the heart of your CNC machine. From cutting performance and surface finish to overall productivity, the spindle plays a vital role in every stage of the machining process.

At POSA MACHINERY, we design and manufacture high-performance spindles for milling and boring applications, tailored to meet the needs of precision industries. Whether you're machining molds, aerospace parts, or structural components, choosing the right spindle can transform your results.

Want to upgrade your CNC machine with a better spindle?
Contact POSA MACHINERY today to learn more about our custom spindle solutions.

In our next article, we’ll help you choose the right milling spindle for your specific industry—whether you're in aerospace, mold & die, or heavy equipment manufacturing.
